RDF-5011
Side mount body
Machine threaded body for a bulkhead fitting with a nut on the inside face.
- Thread1/2-13 NC
RDF-5012
Side mount body, NPT
Pipe threaded body. Supplied double ended, and also available as a single.
- ThreadDouble 1/2 NPT
- AlsoSingle 1/2 NPT
RDF-5001
Side mount float
Hollow float with the magnet captured inside. Passes through a 5/8 inch hole, so it fits from outside the tank.
- TypeHollow, magnet
- Installs through5/8 in hole
- Solid foamedAsk
Specifications
| Part | Description | Thread |
|---|---|---|
| RDF-5011 | Side mount body | 1/2-13 NC |
| RDF-5012 | Side mount body, double ended. Single also available | 1/2 NPT |
| RDF-5001 | Hollow float with magnet, fits through a 5/8 in hole | Not applicable |
How they assemble

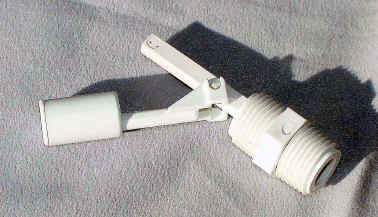

RDF-5012 and RDF-5001 make a complete side mounted level switch. The float pivots on the body, and because the float clears a 5/8 inch hole the whole assembly installs from outside the tank without an access panel.
Materials follow the rest of the catalog: polypropylene, acetal, nylon, PBT, PVDF and PVC. See the materials table.
Request side mount pricing
Tell us the thread and the fluid, and whether you need the body single or double ended.
