RDF-2205
Foamed float, 3/4 in
Foamed polypropylene float. Available with two 1/8 inch diameter magnets or a ring magnet.
- Size3/4 in dia x 1 in
- MaterialFoamed PP
- MagnetTwo 1/8 in, or ring
- Specific gravity0.9 and higher
Floats
RDF-2206
Foamed float, 1 in
The larger foamed polypropylene float, with the same magnet options and a lower minimum density.
- Size1 in dia x 1 in
- MaterialFoamed PP
- MagnetTwo 1/8 in, or ring
- Specific gravity0.6 and higher

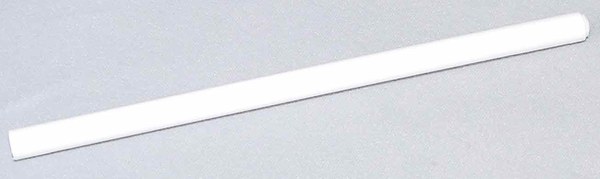

RDF-3500
Closed end tube
Closed end polypropylene tube. Also available with overmolded fittings.
- Inside dia1/4 in
- Outside dia5/16 in
- Length6 in
- OptionOvermolded fittings
RDF-3502
Intermediate float stop
Sets the travel limit part way along the tube for a multi level assembly.
- Fits5/16 in tube
RDF-3601
End cap and float stop
Closes the end of the tube and stops the float in one part.
- Fits5/16 in tube
RDF-3503
Slosh shield
Damps surface movement so the float reads the true level rather than the wave on top of it.
- Fits1 1/4 in PVC pipe
- And5/16 in tube fittings
Float comparison
| Part | Diameter | Length | Magnet | Specific gravity |
|---|---|---|---|---|
| RDF-2205 | 3/4 in | 1 in | Two 1/8 in dia, or ring | 0.9 and higher |
| RDF-2206 | 1 in | 1 in | Two 1/8 in dia, or ring | 0.6 and higher |
Diesel and fuel oil
All floats are available in nylon for diesel and fuel oil applications, where polypropylene is the wrong material for the service.
Specific gravity figures are minimums. Floats can be molded to any density above the minimum, so if you need a specific number, send it over with the fluid.
Request float pricing
Send the diameter, the magnet type and the specific gravity you need, and we will quote it.
